AICTE IDEA LAB SOLUTIONS

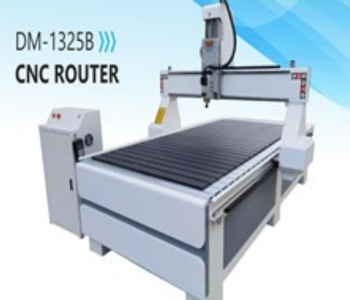

CNC ROUTER
- 3Axis CNC Router, which can Cut, engrave wood, brass, aluminum, ACP, plastic board, MDF, acrylic, etc
- It Ensures fast speed and high accuracy 1300x2500x200mm working area
- Welded structure by thick profiled steel, ensures minimum distortion, excellent rigidity and powerful strength.
- Equipped with powerful spindle motor to make sure a powerful cutting and steady movement Spindle Speed: 24000 RPM 3.5, 6.5, 7.5 KW Air Cooling spindle.
- Widely used in 3D carved plates with wave patterns. cabinet door, craft wooden door, non-painting wooden door, screen, craft windows, computer desk and panel furniture auxiliary processing, etc.
LASER CUTTING MACHINE
Make: SIL
- Laser engraving machine is versatile & finds application in signage, indoor & outdoor advertisement,
- art & craft, gift, shoes, toys, garments, model cutting, papers & packaging, wood & MDF cutting industry, interior, decorators and many more
- DSP based stand alone control system for offline work, space & easy to use printer driver software.
- The machine can print directly from AutoCAD, CorelDRAW, Photoshop etc.
- Printing real pictures, deep engraving, gradient engravings are the main features.
- High speed belt drive plotting unit with precise micro stepping drives.
- Printing real pictures, deep engraving, gradient engravings are the main features.
Double Sided PCB Mill & Engraving Machine
Make: EdNex, Model: Nexa
- 3 Axis CNC All-in-one machine for milling and engraving.
- High Precision, Low cost and low noise operation make it perfect for workshop, home or office use.
- It mills both soft and hard plastic, wood, aluminium, duralumin, PCB, balsa wood, MDF, Plexiglass, iron, copper, brass, bronze, gold, silver, etc.
- It is suitable for engineers, model makers, hobbyists, goldsmiths, jewellers, watchmakers
- Educational Institutions, etc
- Features a long-life brushless spindle motor. While standard DC motors suffer from carbon brush
- wear, NEXA uses a combination of DC circuitry & a brushless AC motor for superior performance and durability.
- Features electronic overload protection of the spindle motor.
3D PRINTER
- Enclosed FDM 3D printer with a 300x300x300mm build volume,
- Featuring a Core XY structure, a dual-gear direct drive extruder, and a top speed of 600mm/s.
- Key technical specifications include a max nozzle temperature of 300∘C300 raised to the composed with power cap C 300∘
- A heat bed temperature of 100∘C100 raised to the composed with power cap 100∘
- And hands-free auto-leveling. It is equipped with AI features like a camera and LiDAR, offers Wi-Fi and Ethernet connectivity, and includes an air purifier with an activated charcoal filter.
3D SCANNER
Make: Creality, Model: CR Scan Ferret Pro
- CR-Scan Ferret is a compact consumer-grade 3D scanner that offers high precision with a maximum accuracy of 0.1mm. It is small in size and lightweight, making it easy to carry.
- New one-shot 3D imaging technology makes scanning smooth even with shaky hands, dramatically increasing the scanning success rate.
- Without scanning spray, you can scan cars, car parts, tires, and other black/metal objects to get the desired model effect.
- Built-in 2MP high-resolution color camera captures full-color 3D models, displaying the original colors and bringing every intricate detail to life. In addition, a unique face mapping algorithm restores detailed features of the face to get a vivid model.
REFLOW OWEN
Model: T962A
- The INFRARED IC HEATER T962A is a micro-processor controlled reflow-oven. It can be used for effectively soldering various SMD and BGA components.
- This machine uses a powerful infrared emission and circulation of the hot air flow, so the temperature is being kept very accurate and evenly distributed.
- A windowed drawer is designed to hold the work-piece, and allows safe soldering techniques and the manipulation of SMD/BAG and other small electronic parts mounted on a PCB assembly.
- The T962A may be used to automatically rework solder to correct bad solder joints, remove/replace bad components and complete small engineering models or prototypes.
Stencil Cutting Machine
- It is primarily used to create precise and high-quality stencils for applying solder paste onto printed circuit boards (PCBs) in the Surface Mount Technology (SMT) process.
- It utilizes a CO2 laser to cut fine details into stencil material, ensuring accurate and consistent solder paste application during PCB assembly.
- This machine is crucial in both educational and professional settings for prototyping and small-scale production, as it allows for quick turnaround of custom stencils, enhancing the efficiency and precision of the solder paste printing stage in electronics manufacturing.

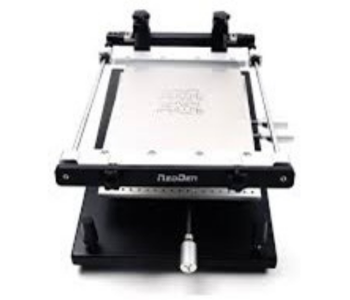

High Precision Solder Paste Printer
Model: FP-2636 Frameless
- The FP2636 Manual high precision Solder Printer for Frame less Stencils is a simple way to apply solder to your PCBs every time.
- The mechanical fixation frame for quick installation and replacement of frameless stencils, ensure high-efficiency low-cost.
- Proper solder application is frequently overlooked as a critical step in the SMD process.
- L supports and pins to fix PCB, applicable for multiple types PCBs' fixation and printing, more flexible and convenient
- Support for single sided as well as double sided PCB.
IDEAL LAB : CUSTOMER LISTS
- InnovateTN - Government Engineering College- Salem
- InnovateTN - Government Engineering College- Trichy
- InnovateTN - Government Engineering College- Tirunelveli
- SRM valliammai engineering college - Chennai
- Muthayammal Engineering College- Namakkal
- Mepco schlenk Engineering College- Sivakasi
- Vellammal Engineering College- Madurai
- Nitte meenakshi institute of technology (NIMT), Banglore
- MS Ramaiah University of Applied Science, Banglore
- Siddaganga institute of technology, Tumkur
- Federal Institute of Science and Technology, Angamaly
- St. Joseph's College of Engineering and Technology, Palai
- Amal Jyothi Engineering College, Koovappally
- Gokaraju institute of engineering and technology, Hyderabad
- Walchand college of engineering, Sangli
