PC Based Oscilloscopes-The Future of Test & Measurement Labs

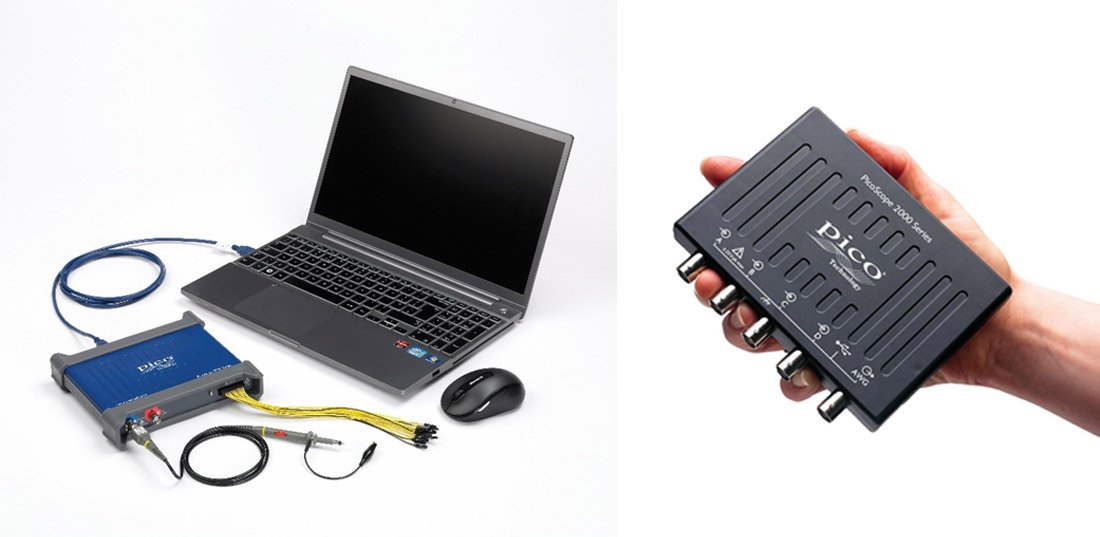

Pico Technology is the market leader in PC Oscilloscopes — the modern alternative to traditional benchtop oscilloscopes. They offer PC based Test and measurement equipment & data loggers, which can be carried in your laptop bags. These are unbeatable value for money and are ideal for education, hobby and field service use. In the lab, the low cost allows one scope per person rather than having to share.
PicoScopes are used by engineers, scientists, teachers and students to measure and analyze electronic signals to validate and ensure correct and reliable operation of their electronic designs.

PicoScopes provide an informative display and advanced waveform analysis that enhance the productivity of engineers in applications areas such as embedded and automotive systems, high-speed communications, process control, power conversion, avionics, and scientific research.
High-end features such as serial decoding and mask limit testing are included as standard — no more expensive “options” to pay for.

PicoScope software

PicoScope application software is available for MicroSoft Windows 7, 8 and 10, Linux Debian, OpenSUSE, and Fedora derived distributions, plus OS-X (Mac). The supplied Software Development Kit (SDK) contains programming examples in popular languages and environments including MatLab, LabView, C++, and C#.

Pico data acquisition products provide a straightforward solution for a broad range of data logging needs. PicoLog data loggers require no power supply and simply plug into a USB or Ethernet port on a PC or network. Every logger is supplied with data acquisition software to measure, record and analyze parameters such as voltage, current, temperature, humidity, pH, vibration and many others.

Popular categories

  • Oscilloscopes
  • Coaxial Adapters
  • Data Loggers
  • Temperature Probes
  • Oscilloscope Probes
  • Test Leads
  • Oscilloscope Kits
  • Current Clamps
  • Data Logger Accessories
  • Oscilloscope Probe Accessories

Pico oscilloscope range

PicoScope® 2000 Series

Ultra-compact range of 8-bit oscilloscopes and mixed-signal oscilloscopes (MSO). 2000B models offer more memory and bandwidth. All models are USB-powered and have a built-in function generator and AWG.

PicoScope 2000 Series ultra-compact oscilloscopes
Channels 2 or 4 (+16 digital with MSO)
Bandwidth 10 to 100 MHz
Max Sampling 1 GS/s
Memory 8 kS to 128 MS

PicoScope® 4000 Series

High-resolution oscilloscopes with 12 to 16-bit resolution. Low noise and distortion provide unmatched signal fidelity. All are USB-powered and most include an AWG. Series includes differential-input models.

PicoScope 2000 Series ultra-compact oscilloscopes
Channels 2, 4 or 8
Bandwidth 5 to 20 MHz
Max Sampling 80 MS/s
Memory 10 MS to 256 MS

PicoScope® 6000 Series

High-performance oscilloscopes with up to 1 GHz bandwidth, 8 or 8-12 bit flexible resolution and ultra-deep capture memory that delivers 200 ms capture duration at maximum sample rate of 5 GS/s. Optional MSO pods add up to 16 digital channels.

PicoScope 2000 Series ultra-compact oscilloscopes
Channels 4 or 8 (+ 16 digital, optional with MSO)
Bandwidth 300 MHz to 1 GHz
Max Sampling 5 GS/s
Memory 1 GS to 4 GS

PicoScope® 3000 Series

General-purpose 8-bit oscilloscopes and mixed-signal oscilloscopes (MSO) that combine fast sampling rates with class-leading deep buffer memories. All models have a built-in function generator and AWG.

PicoScope 2000 Series ultra-compact oscilloscopes
Channels 2 or 4 (+16 digital with MSO)
Bandwidth 50 to 200 MHz
Max Sampling 1 GS/s
Memory 64 MS to 512 MS

PicoScope® 5000 Series

Flexible Resolution Oscilloscopes. Breakthrough ADC technology allows a range of hardware resolutions from 8 to 16 bits. Combines the high sampling rate of the PicoScope 3000 Series with the high resolution of the PicoScope 4000 Series.

PicoScope 2000 Series ultra-compact oscilloscopes
Channels 2 or 4 (+16 digital with MSO)
Bandwidth 60 to 200 MHz
Max Sampling 1 GS/s
Memory 128 MS to 512 MS

​PicoScope® 9000 Series

The unique PicoScope SXRTOs and Sampling Oscilloscopes for data eye diagram, speed and jitter analysis out to 16 Gb/s. 9.5 GHz optical, clock recovery and differential TDR/TDT options.

PicoScope 2000 Series ultra-compact oscilloscopes
Channels 2 or 4
Bandwidth 5 GHz to 25 GHz
Max Sampling 500 MS/s
Memory 250 kS
